The microexposer

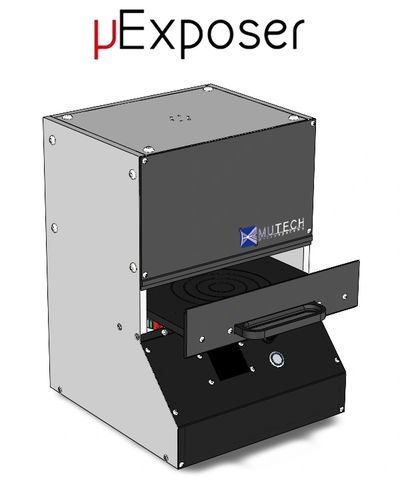

Mutech microsystems microexposer is a High Value UV exposing system designed for microfabrication applications.
It allows the user to perform fast lithography processes on samples and substrates.
The system consists of an UV 365nm parallel LED light source and a sliding tray where you can put your photolithography mask and sample to expose.
A variety of custom holders and customizations can be provided for your application.
Lithography process
The lithography process is the basic technique for reducing the size and dimension of devices, in the “top-bottom” approach. This technique is transversal to many fields of physics, engineering and biosciences, expanding and consolidating microfabrication applications and nanotechnology.

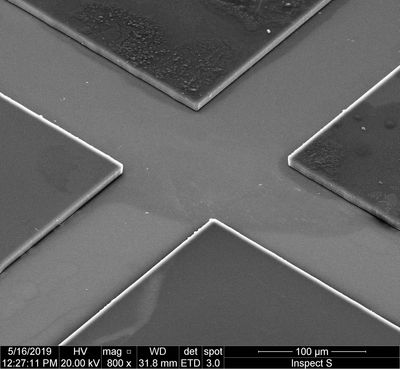

During the lithography process a pattern is transferred to a light sensitive resist, spin coated over the sample. The photoresist is then developed removing the exposed areas (for positive photoresists). Using chemical or physical etching (e.g. ion beam or acids attacks), the unprotected areas of the sample are removed and the desired pattern is finally transferred to the sample.
Main applications
The microexposer is a robust system (all metal body structure), especially designed for easy use, low maintenance requirements and fast single layer device fabrication. Custom sample holders can be ordered for special substrates and samples, such as not flat or flexible substrates. The microexposer is ideal for scaling from lab fabrication to low volume commercial production.
A complementary tool for our direct laser system

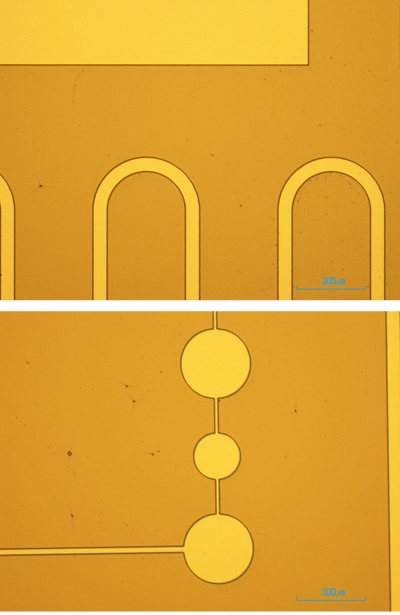

Our microLaser:Direct Laser Lithography System, allows the user to fabricate its own optical masks, offering an increased versatility. The microexposer system, as a complementary tool of the microlaser offers the possibility to work with 365 nm sensitive photoresists and obtain high aspect ratio structures in the lithography process. These possibilities make the microexposer and microlaser package, the ultimate low cost solution for the fast fabrication and development of single layer applications, including biomedical and microfluidics devices.
Specs
Optics
Wavelength 365±5 nm
Exposure time 0.1 - 100 s
Exposure area 100mm diameter
Power density 0.2 - 20 mW/cm^2
Homogeneity < 5%
Light divergence < 2°
Mechanics
Size 220x230x320 mm
Weight 9kg
Power 110v/220v 50w
