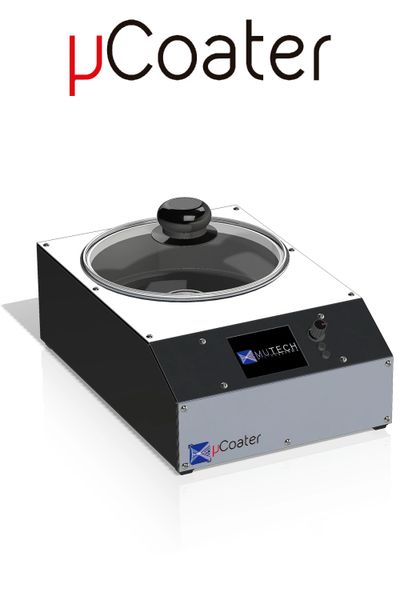

The coater

µCoater is a very easy to use and full of features benchtop spin coater, it includes an integrated vacuum system with a rotating vacuum chuck for holding the substrates to coat while spinning. You don't need an external vacuum pump. it's integrated inside.


It has an all metal body construction (steel and aluminum) with a polypropylene vacuum chuck, the inside of the spinning bowl is coated with a PTFE based material which is very easy to clean.


It uses a high quality outrunner brushless motor. These type of motors are very efficient and have very low static friction resulting in a long lifetime.

User interface

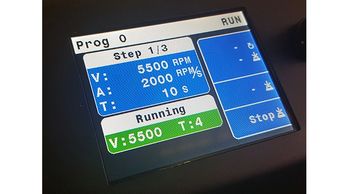

It has a full color TFT LCD screen with a very simple to use and not cluttered graphical user interface where you can save multiple spinning programs.


Each program can have several spinning steps with different speeds, accelerations and spinning times per step.


The vacuum pump is also controlled from the user interface.

Spin coating process

The spin coating process is one of the best ways to deposit thin films of coating materials on substrates. Usually a small amount of the coating material is applied on the center of a substrate and then  it's rotated at high speed in a controlled manner, resulting on a homogeneous film on the substrate.


This technology is typically used for the application of photosensitive materials for microfabrication applications, for the deposit of nanoparticles and nanotubes or for sol-gel processes. Of course you can use our spin coater for any process you need it.

Contact us for a quotation

    Advantages

    Integrated vacuum

    Easy to use user interface

    Integrated vacuum

    The µCoater has a vacuum chuck with a pump inside its body. You don't need external connections other than the power plug, making it ideal for a glovebox.


    Brushless motor

    Easy to use user interface

    Integrated vacuum

    This kind of motor is very reactive and efficient, allowing for a smaller overall design and higher speeds and accelerations.

    Easy to use user interface

    Easy to use user interface

    Easy to use user interface

    The full color LCD screen allows for a very intuitive usage of the µCoater.

    Optional extras

    Aluminum main chuck and adapters

    Aluminum main chuck and adapters

    Aluminum main chuck and adapters

    Extra PP adapters

    Aluminum main chuck and adapters

    Aluminum main chuck and adapters

    PP adapter for ophthalmic lenses

    Aluminum main chuck and adapters

    PP adapter for ophthalmic lenses

    Specs

    Rotation

    Max speed                    10000 rpm
    Min speed                     500 rpm
    Max acceleration        5000 rpm/s
    Max time per step      1000 s

    Vacuum system and mechanics

    Includes an integrated vacuum pump


    Vacuum chuck o-ring diameter               36 mm

    Vacuum chuck external diameter          45 mm

    Spinning bowl internal diameter           180 mm



    Chuck adapters with o-rings of different diameters can be provided (adapters included: 3.5mm, 22 mm)


    The chuck works perfectly with small 5x5mm fragments and up to 100mm wafers changing the adapter.

    Interface

    TFT-LCD full color graphical user interface

    Context-based navigation with buttons and a rotary encoder

    Memory

    10 different programs

    Up to 7 steps per program

    Each step has it's own speed, acceleration and time.

    Materials

    Frame:                           Sheet steel

    Bowl:                             Aluminum

    Bowl coating:             PTFE

    Lid:                                 Glass

    Chuck:                          Polypropylene (Optional: Aluminum)

    Chuck accesories:    Polypropylene (Optional: Aluminum)
