The aligner

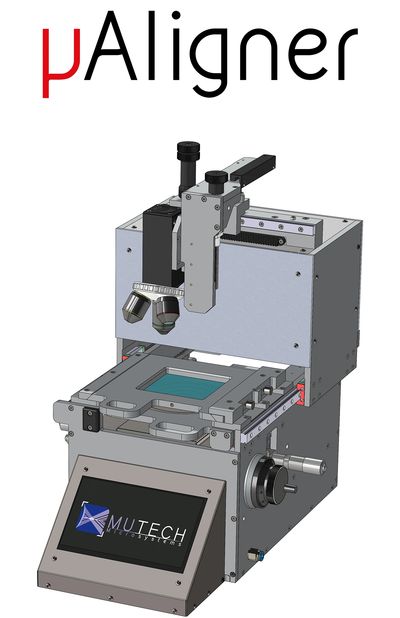

Mutech microsystems microAligner is a compact high value UV mask aligner designed for microfabrication applications.


It allows for easy fabrication of multilayer devices on a multitude of photoresists, with excellent exposure quality.


The easy to use, 7 inch touchscreen based control allows the user to align using the calibrated digital microscope and the X-Y-R micrometer based alignment stage.


The fully electronic wafer pressure and gap control allows for easy alignment and very high repeatability of the exposure conditions between processes.

Main applications

microAligner is ideal for the fabrication of high level systems for research applications.


Main applications range from microfluidics, optics and biotechnology to microelectronic devices.

It provides the user with fast multilayer device fabrication capabilities thanks to its high resolution and high accuracy alignment.

Contact us for a quotation

Dual microscope option

We are also offering a dual microscope version of our mask aligner for rapid aligning of big photomasks.


With this option the operator has access to two video feeds on the screen in real time while aligning, allowing the user to easily align two fiducial marks at once, simplifying the alignment process.


Advantages

365nm LED source

Big exposure area

Big exposure area

A LED source allows for instant turn-on, excellent homogeneity, low divergence and very long life.

Big exposure area

Big exposure area

Big exposure area

With the 100mm diameter UV aperture, you can expose up to 4" wafers with 5" photomasks.

Low footprint

Big exposure area

Electronic pressure and gap control

The microAligner footprint is only 350x490 mm and weighs less than 20kg.

Electronic pressure and gap control

Electronic pressure and gap control

Electronic pressure and gap control

The wafer stage is electronically controlled with real time pressure sensing, allowing for excellent repeatability.

Digital microscope

Electronic pressure and gap control

Lower price than the competition

The digital microscope includes a 590nm coaxial yellow illumination and it is used from the screen.

Lower price than the competition

Electronic pressure and gap control

Lower price than the competition

We have managed to keep the prices low allowing you to have a better lab on a tight budget.

Controls

7" Touchscreen

The μAligner is primarily controlled from its 7 inch capacitive touchscreen.

From here the user has access to all the controls of the machine, the microscope controls and video feed, exposure parameters, wafer stage controls and mask vacuum.You have access to a real time wafer Z position and wafer pressure signals to allow for maximum repeatability.



Mechanics

The wafer Z position is controlled with a big 60 mm rotary encoder for maximum control.  The user controls the wafer alignment to the mask using the X-Y-R stage with the mechanical micrometers.

The microscope can be freely moved by the user around the photomask to look for alignment marks.

Combine it with our direct laser system for maximum capabilities

Our direct laser lithography system, the microLaser, allows the user to fabricate its own optical masks, offering an increased versatility.


The microAligner system, as a complementary tool of the microLaser, offers the possibility to work with 365 nm sensitive photoresists and high accuracy alignment capabilities to obtain high aspect ratio structures and a high throughput on the lithography process.


These possibilities make the microAligner and microLaser package the ultimate solution for the fast fabrication and development of multilayered device applications including biomedical, microfluidics and microelectronic devices.

Specs

X-Y-R Aligning stage

Type of control                          Mechanical, micrometer based

Accuracy                                       1 µm

X-Y alignment span                  6 mm

R alignment span                     5º

Z Wafer stage

Type of control                                  Motorized

Stage step                                            0.31 µm/step

Pressure sensing resolution        20 g

Maximum pressure                          5 kg


-   60 mm rotary encoder for precise gap/pressure control.

-   Wafer pressure sensing with live feedback for high repeatability between processes.

-   Interchangeable vacuum based photomask holders for 2”, 3”, 4”, 5” square photomasks and microscope slides.

UV Optics

Wavelength                  365 nm

Exposure time             0.1 - 200 s

Exposure area             100 mm diameter

Power density             0.2 - 20 mW/cm^2

Homogeneity               < 5%

Light divergence         < 3°


-   Motorized motion between aligning and exposure modes

Microscope

Camera resolution                           1920x1080

Auxiliary illumination                     590nm coaxial yellow LED

Field illumination mode                Clear field illumination

Alignment technique                      Top-side alignment, single camera

Motion                                                   3 axis, independent XYZ manual stage


Objective                         Effective magnification on screen

Low mag                                                           90x

Medium mag                                                 315x

High mag                                                        480x

Electronics

Display                   7” full color LCD

User control         Capacitive touchscreen for machine controls and microscope


-    32 Bits ARM cortex based integrated computer for maximum compactness.

Mechanics

Size                   350x490x470 mm

Weight             19 kg

Power              110v/220v 250W

Downloads

Brochure (pdf)Descargar
Contact us for more information
